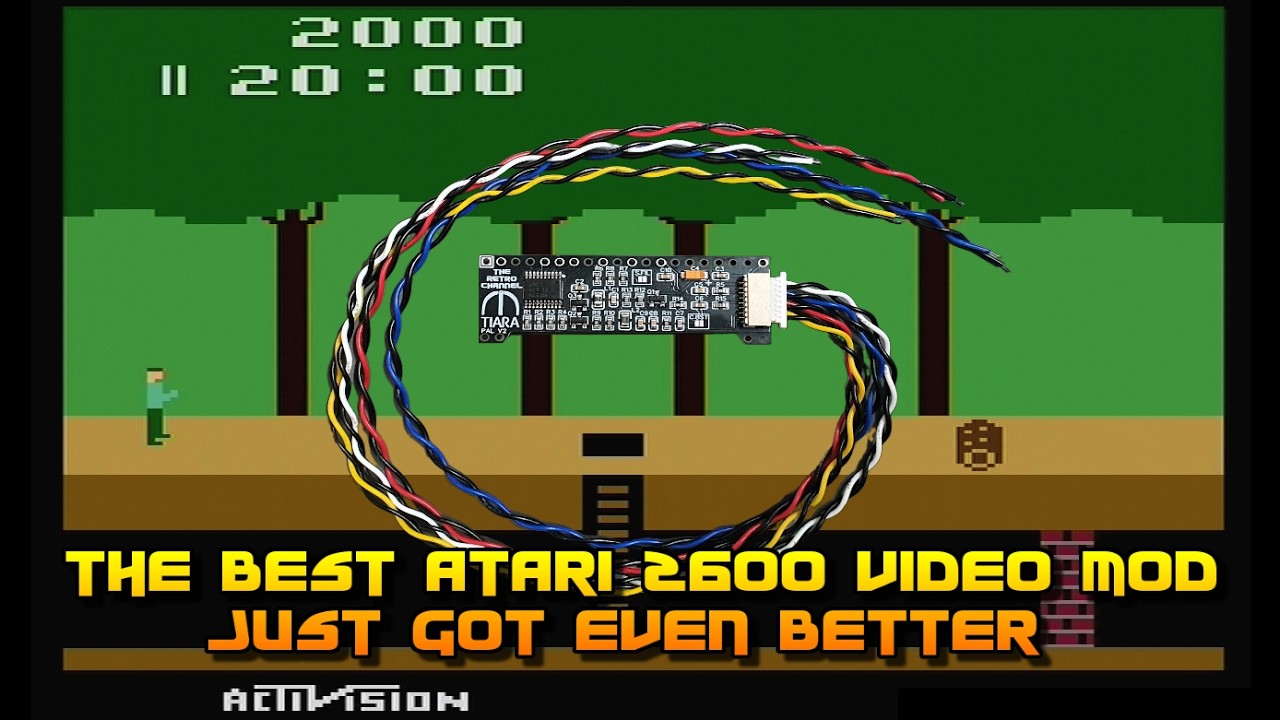

New and improved Atari 2600 S-Video and composite mod - TIARA V2

TheRetroChannel has uploaded a guide for the TIARA V2 modification of the Atari 2600. The video opens with a side-by-side comparison of the original V1 hardware and the updated V2 version. It then proceeds to outline the installation process and performance testing.

Key steps include installing a switcher, connecting video outputs, and configuring jumpers such as S.FIL and C.BST. The presenter demonstrates color trimpot adjustments for both NTSC and PAL standards, highlighting the differences in calibration. Additional instructions cover a junior-level install segment later in the timeline.

The results segment presents NTSC S-Video output followed by PAL composite and S-Video comparisons. Viewers are shown what can go wrong during the mod and how to address common issues. The video concludes with a brief thank-you and sign-off.

The TIARA V2 upgrade offers enhanced video fidelity for Atari 2600 enthusiasts seeking both S-Video and composite outputs. By providing detailed jumper settings and trimpot tuning, the guide aims to simplify the modification for hobbyists. The channel's thorough walkthrough makes the process accessible to a broader audience.

Watch the full walkthrough of the TIARA V2 mod on the Atari 2600:

Comment highlights:

"You may have said it already, but will you be working on an 8-bit computer version of this? The initial installation would be so much easier on a system without sockets (like the 130XE) since I am ..." - @kevin34ct

"Adding the connector and supplying the wiring harness was definitely a good idea." - @Colin_Ames

"These are available here If you're looking to do a no cut mod, consider these Note I don't make these and haven't tried them myself but they look pretty neat." - @TheRetroChannel
